UNOBAT 78+ | Sports Flooring System
The UnoBat 78+ system represents the next evolution in sports flooring setting a new standard for player safety, durability, and adaptability. The 27 mm thick battens are engineered to deliver superior impact reduction and consistent ball bounce for exceptional playing experience.

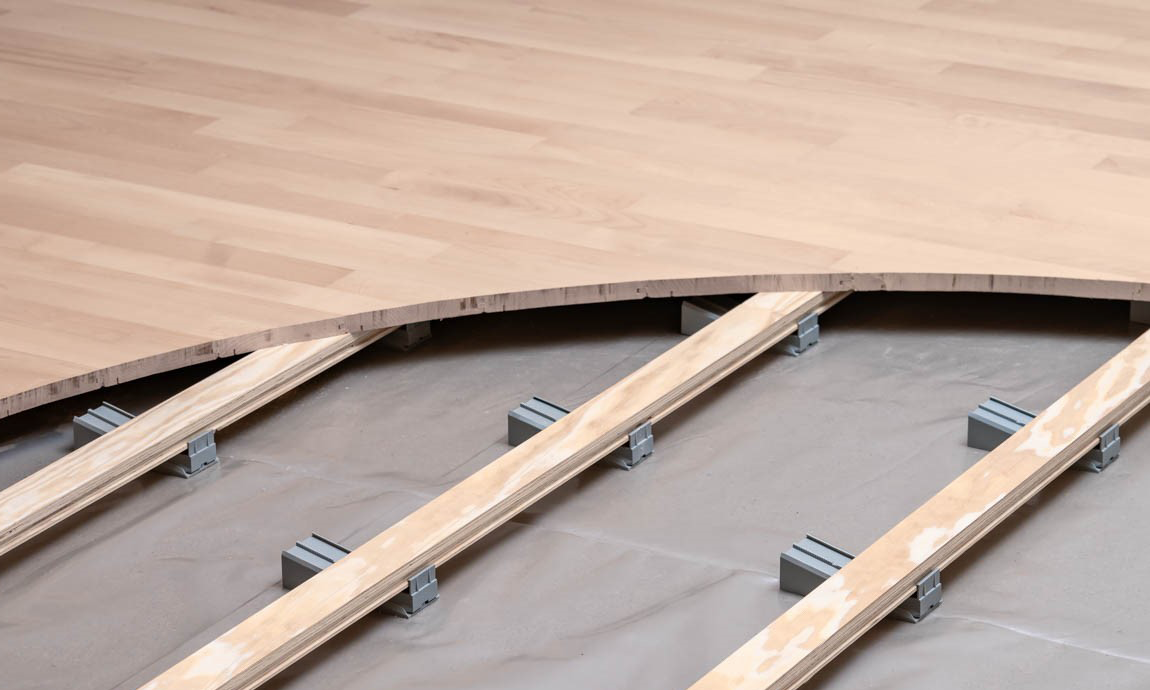

Our new wedge is equipped with the pre-attached shock-absorbing pads to ensure an improved connection between batten and wedge, minimising the risk of separation during installation. The integration allows the UnoBat 78+ to be installed seamlessly over uneven subfloors.
The wedge and shock pad are manufactured as a single component, making them quick and easy to fit. The system can be adjusted within a height range of 78 mm to 205 mm including the Junckers 22 mm thick floorboard.
Facts
PERFORMANCE |
Area-elastic according to EN 14904 class A4 |
USE |
All types of sport Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
FLOORBOARD TYPE |
Prefinished 22 mm 2-strip solid hardwood |
SUBCONSTRUCTION |
Single layer batten system |
BATTEN CENTRE, C/C |
Choice between 336 mm and 411 mm |
REQUIRED SUBFLOOR |
Even or uneven |
CONSTRUCTION HEIGHT, BASES EXCLUDED |
78 mm to 105 mm |
CONSTRUCTION HEIGHT, BASES INCLUDED |
78 mm to 205 mm |
JUNCKERS 25 YEARS FATIGUE TEST |
✔ |
SANDING AND RE-SEALING |
Yes to bare wood 8-10 times |
SUITABLE FOR UNDERFLOOR HEATING |
Yes |

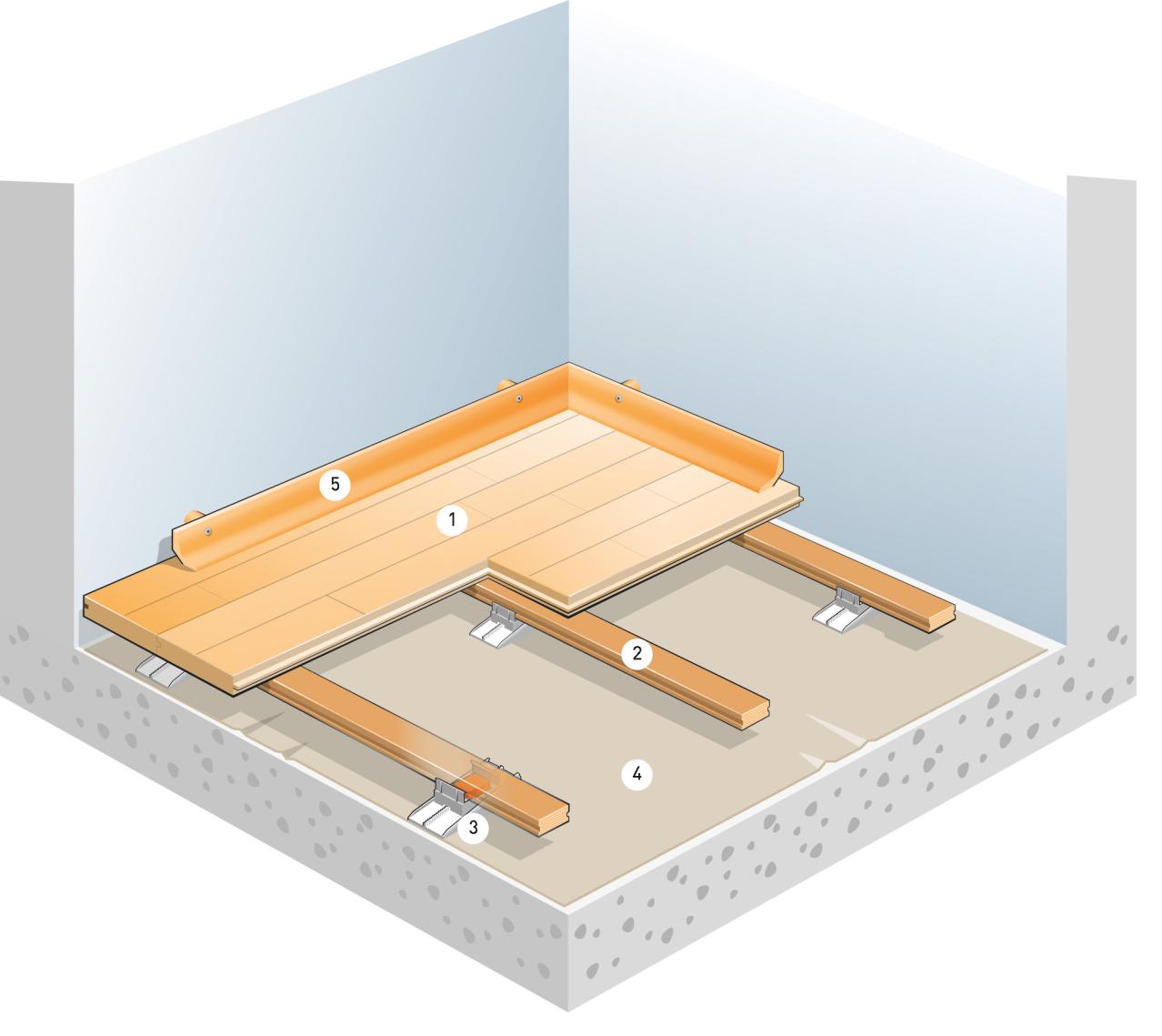

SYSTEM COMPONENTS
1. 22 x 129 x 3700 mm floorboards
2. UnoBat 78+ batten: 27 x 60 x 3360 mm
3. UnoBat 78+ wedge including shockpad
4. PE moisture barrier
5. Combi sports skirting
TEST RESULTS |
|||
|
|
REQUIREMENTS EN 14904:A4 |
BATTEN DISTANCE C/C 411 MM |
BATTEN DISTANCE C/C 336 MM |
SHOCK ABSORPTION |
≥ 55 < 75 % |
67 % |
64 % |
VERTICAL DEFORMATION |
≥ 2.3 < 5.0 mm |
2.8 mm |
2.4 mm |
BALL BOUNCE |
≥ 90 % |
91 % |
93 % |
FRICTION |
≥ 80 ≤ 110 |
99 |
99 |
ROLLING LOAD |
≥ 1500 N |
3000 N1 |
3500 N1 |
POINT LOAD |
None |
5500 N ~ 550 kgs2 |
6000 N ~ 600 kgs2 |
2. Junckers test with 100x100 mm point load.
CHOICE OF FLOORBOARD
A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.
The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech sports floors are dried using Junckers unique press drying method. Our ash and maple sports floors are kiln dried.
Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC accreditation.
We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
