CLIP | Sports Flooring

The Clip System is a low profile, floating sports flooring system, designed for installations over all types of flat subfloors. This system is ideal for refurbishment projects, or when the finished floor height must be kept to an absolute minimum.

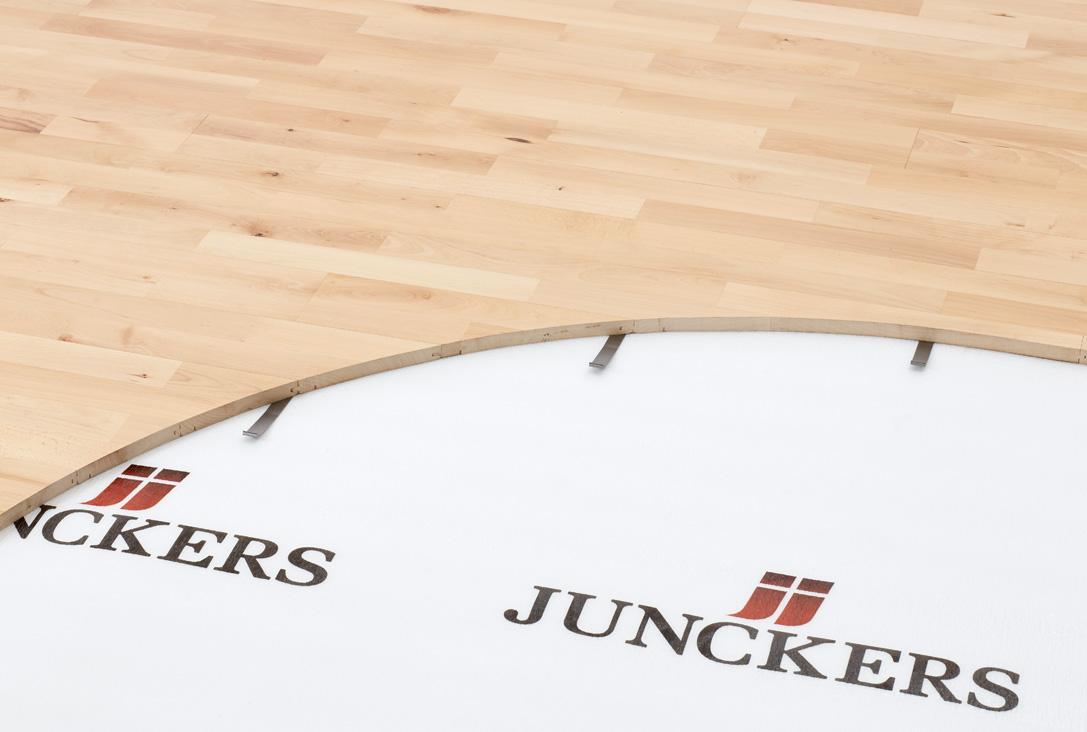

The 22mm solid hardwood floor boards are joined together with Junckers Steel Clips, which allow for unique independent floor board flexing. The floor floats over a 10mm performance foam underlay for maximum resilience.

Since there are no nails used in the Clip System, the floor system can be taken up and reinstalled elsewhere if ever needed.

Facts

PERFORMANCE

Area-elastic according to EN 14904 class A3

USE

All types of sport
Multi-functional sports halls
From small leisure centres to large arenas
Refurbishment

FLOORBOARD TYPE

Prefinished 22mm 2-strip solid hardwood

SUBCONSTRUCTION

Floating floor system

UNDERLAY

10mm SportsFoam

REQUIRED SUBFLOOR

Even

CONSTRUCTION HEIGHT

32mm

JUNCKERS 25 YEARS FATIGUE TEST

SANDING AND RE-SEALING

Yes to bare wood 8-10 times

SUITABLE FOR UNDERFLOOR HEATING

Yes

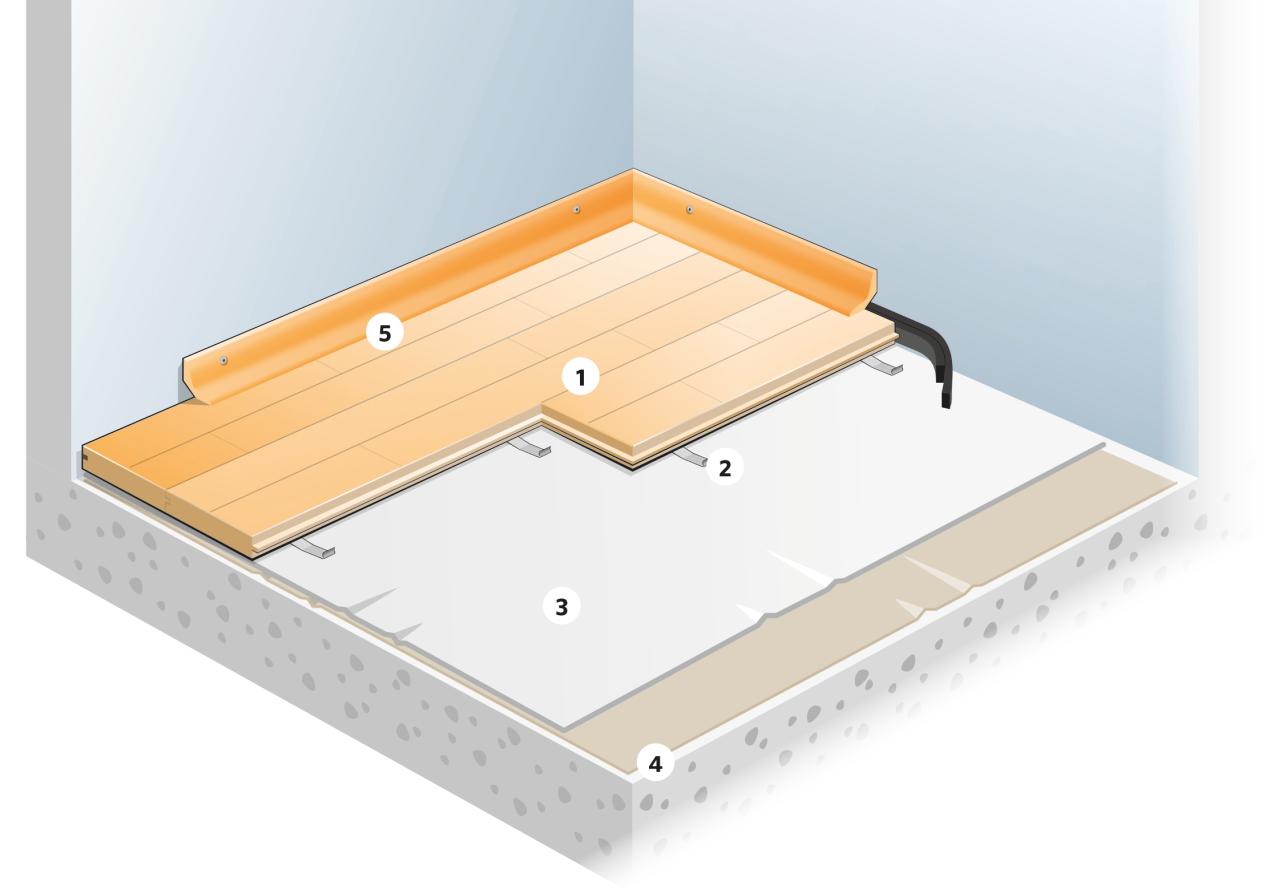

SYSTEM COMPONENTS

1. 22 x 129 x 3700mm floorboards
2. Clips
3. Junckers SportsFoam
4. PE moisture barrier
5. Combi sports skirting





REQUIREMENTS EN 14904:A4

TEST RESULTS

SHOCK ABSORPTION

≥ 40 < 55 %

46 %

VERTICAL DEFORMATION

≥1.8 <3.5mm

2.4 mm

BALL BOUNCE

≥ 90 %

98 %

FRICTION

≥ 80 ≤ 110

~ 85

ROLLING LOAD

≥ 1500 N

✓ 2500 N1

POINT LOAD

None

4000 N ~ 400 kgs2

1. Junckers test with solid rubber wheels: width 50mm, diameter 100mm.
2. Junckers test with 100x100mm point load.

CHOICE OF FLOORBOARD

A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.

The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech and Maple sports floors are dried using Junckers unique press drying method.

Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.

All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.

We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
